Name: Outlaw Beadlock | Raw
Brand: Riverside Warehouse
SKU: 78533
Price: 293.3 USD
Availability: InStock

$419.00 starting at $293.30

Additional Finishes

SIZE | OFFSET

17x7 | +25mm/4.5+2.5

BOLT PATTERN

4x136/4x137 (Can-Am / Honda)

4x156 (Kawasaki / Polaris / Yamaha 2019+ / Speed)

78533

Order Soon - Only 19 left

Discontinued - Limited to In Stock Inventory

NOTE: All Metal FX Offroad wheels require our lug nuts

Total $293.30

[{"id":45696772210740,"title":"17x7 | +25mm\/4.5+2.5 \/ 4x136\/4x137 (Can-Am \/ Honda)","option1":"17x7 | +25mm\/4.5+2.5","option2":"4x136\/4x137 (Can-Am \/ Honda)","option3":null,"sku":"78533","requires_shipping":true,"taxable":true,"featured_image":{"id":31191439048756,"product_id":7134074667060,"position":1,"created_at":"2024-01-16T14:56:08-08:00","updated_at":"2024-01-16T14:56:10-08:00","alt":null,"width":3560,"height":3560,"src":"\/\/metalfxoffroad.com\/cdn\/shop\/files\/85B10BEA-6955-4D2A-AE2B-A1444FBB6EA0.jpg?v=1705445770","variant_ids":[45696772210740,45696772243508]},"available":true,"name":"Outlaw Beadlock | Raw - 17x7 | +25mm\/4.5+2.5 \/ 4x136\/4x137 (Can-Am \/ Honda)","public_title":"17x7 | +25mm\/4.5+2.5 \/ 4x136\/4x137 (Can-Am \/ Honda)","options":["17x7 | +25mm\/4.5+2.5","4x136\/4x137 (Can-Am \/ Honda)"],"price":29330,"weight":454,"compare_at_price":41900,"inventory_management":"shopify","barcode":null,"featured_media":{"alt":null,"id":23500855345204,"position":1,"preview_image":{"aspect_ratio":1.0,"height":3560,"width":3560,"src":"\/\/metalfxoffroad.com\/cdn\/shop\/files\/85B10BEA-6955-4D2A-AE2B-A1444FBB6EA0.jpg?v=1705445770"}},"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":45696772243508,"title":"17x7 | +25mm\/4.5+2.5 \/ 4x156 (Kawasaki \/ Polaris \/ Yamaha 2019+ \/ Speed)","option1":"17x7 | +25mm\/4.5+2.5","option2":"4x156 (Kawasaki \/ Polaris \/ Yamaha 2019+ \/ Speed)","option3":null,"sku":"78535","requires_shipping":true,"taxable":true,"featured_image":{"id":31191439048756,"product_id":7134074667060,"position":1,"created_at":"2024-01-16T14:56:08-08:00","updated_at":"2024-01-16T14:56:10-08:00","alt":null,"width":3560,"height":3560,"src":"\/\/metalfxoffroad.com\/cdn\/shop\/files\/85B10BEA-6955-4D2A-AE2B-A1444FBB6EA0.jpg?v=1705445770","variant_ids":[45696772210740,45696772243508]},"available":true,"name":"Outlaw Beadlock | Raw - 17x7 | +25mm\/4.5+2.5 \/ 4x156 (Kawasaki \/ Polaris \/ Yamaha 2019+ \/ Speed)","public_title":"17x7 | +25mm\/4.5+2.5 \/ 4x156 (Kawasaki \/ Polaris \/ Yamaha 2019+ \/ Speed)","options":["17x7 | +25mm\/4.5+2.5","4x156 (Kawasaki \/ Polaris \/ Yamaha 2019+ \/ Speed)"],"price":29330,"weight":454,"compare_at_price":41900,"inventory_management":"shopify","barcode":null,"featured_media":{"alt":null,"id":23500855345204,"position":1,"preview_image":{"aspect_ratio":1.0,"height":3560,"width":3560,"src":"\/\/metalfxoffroad.com\/cdn\/shop\/files\/85B10BEA-6955-4D2A-AE2B-A1444FBB6EA0.jpg?v=1705445770"}},"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}}]

{"id":45696772210740,"title":"17x7 | +25mm\/4.5+2.5 \/ 4x136\/4x137 (Can-Am \/ Honda)","option1":"17x7 | +25mm\/4.5+2.5","option2":"4x136\/4x137 (Can-Am \/ Honda)","option3":null,"sku":"78533","requires_shipping":true,"taxable":true,"featured_image":{"id":31191439048756,"product_id":7134074667060,"position":1,"created_at":"2024-01-16T14:56:08-08:00","updated_at":"2024-01-16T14:56:10-08:00","alt":null,"width":3560,"height":3560,"src":"\/\/metalfxoffroad.com\/cdn\/shop\/files\/85B10BEA-6955-4D2A-AE2B-A1444FBB6EA0.jpg?v=1705445770","variant_ids":[45696772210740,45696772243508]},"available":true,"name":"Outlaw Beadlock | Raw - 17x7 | +25mm\/4.5+2.5 \/ 4x136\/4x137 (Can-Am \/ Honda)","public_title":"17x7 | +25mm\/4.5+2.5 \/ 4x136\/4x137 (Can-Am \/ Honda)","options":["17x7 | +25mm\/4.5+2.5","4x136\/4x137 (Can-Am \/ Honda)"],"price":29330,"weight":454,"compare_at_price":41900,"inventory_management":"shopify","barcode":null,"featured_media":{"alt":null,"id":23500855345204,"position":1,"preview_image":{"aspect_ratio":1.0,"height":3560,"width":3560,"src":"\/\/metalfxoffroad.com\/cdn\/shop\/files\/85B10BEA-6955-4D2A-AE2B-A1444FBB6EA0.jpg?v=1705445770"}},"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}}

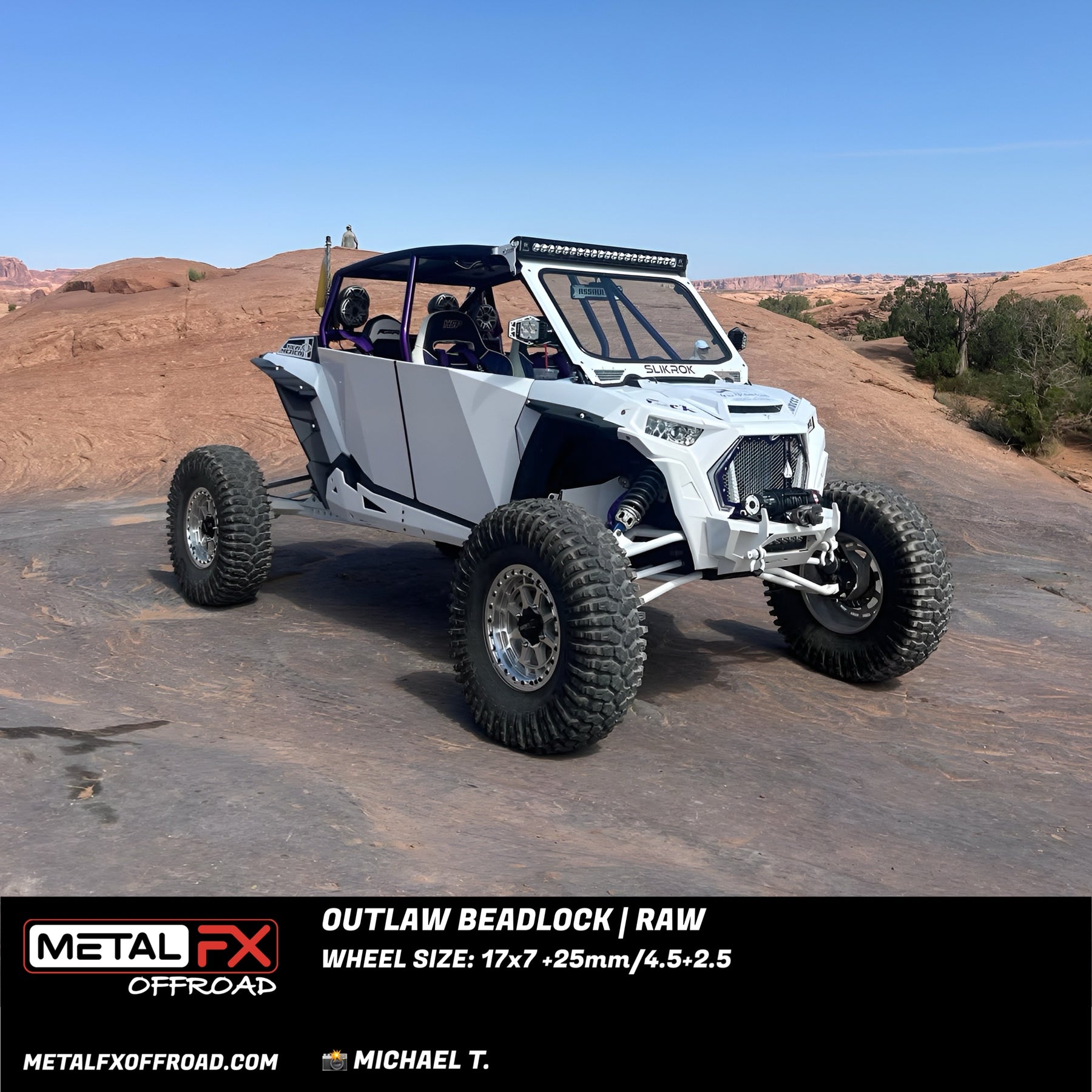

Eight Spokes. Raw Outlaw Character.

The Outlaw Beadlock in Raw brings a tough eight-spoke design and functional beadlock hardware to your 4-lug UTV build. Its 17x7 size pairs a bold wheel profile with a stripped-back finish. From getting your rig ready in the garage to rolling back from a trail run, the Outlaw gives your setup a purposeful look with hardware to match.

4-Lug Platform Specific

The Outlaw is available in 4x136/4x137 and 4x156 bolt patterns. The 17x7 wheel features +25mm offset and 4.5+2.5 backspacing. Select the bolt pattern that matches your setup and verify fitment and clearance before ordering.

Raw Finish

The Raw finish gives the Outlaw a stripped-back character that puts its eight-spoke design and beadlock hardware in focus. It is an alternative to Satin Black for a build that calls for a more industrial look.

True Beadlock Design

The functional beadlock ring mechanically clamps the tire's outer bead to the wheel, helping keep it seated when running lower tire pressures. The Outlaw pairs its A356-T6 cast aluminum wheel with a 6061-T6 forged aluminum beadlock ring for purposeful off-road hardware.

Specs at a Glance

Finish: Raw
Sizes: 17x7 (+25mm / 4.5+2.5)
Bolt Pattern: 4x136/4x137 and 4x156
Type: True Beadlock
Construction: A356-T6 Cast Aluminum Wheel with 6061-T6 Forged Aluminum Beadlock Ring

Before installing

Be sure to remove the mud scrapers prior to installation of these wheels to avoid damage.

SPECIFICATIONS

SKU	Model	Finish	Wheel Size	Bolt Pattern	Backspace (in)	Offset (mm)	Offset (in)	Center Bore	Weight (lbs)	Load Rating	Lip Size	Cap SKU	Cap Hardware SKU	BL Ring SKU	BL Hardware SKU
78513	Outlaw Beadlock	Satin Black	15x6	4x136/4x137	5	+38mm	4.5+1.5	110.2	17	1000	0.67	10311	10641	10211	10601
78514	Outlaw Beadlock	Raw	15x6	4x136/4x137	5	+38mm	4.5+1.5	110.2	17	1000	0.67	10311	10641	10214	10601
78516	Outlaw Beadlock	Satin Black	15x6	4x156	5	+38mm	4.5+1.5	132	17	1000	0.67	10311	10641	10211	10601
78517	Outlaw Beadlock	Raw	15x6	4x156	5	+38mm	4.5+1.5	132	17	1000	0.67	10311	10641	10214	10601
78519	Outlaw R Beadlock	Satin Black	15x7	5x114.3 (5x4.5)	6.3	+61mm	6+1	66.1	19	1260	0.26	10313	10641	10211	10601
78520	Outlaw R Beadlock	Raw	15x7	5x114.3 (5x4.5)	6.3	+61mm	6+1	66.1	19	1260	0.26	10313	10641	10214	10601
78530	Outlaw R Beadlock	Satin Black	17x7	5x114.3 (5x4.5)	6.3	+61mm	6+1	66.1	26	1260	0.03	10313	10641	10221	10601
78531	Outlaw R Beadlock	Raw	17x7	5x114.3 (5x4.5)	6.3	+61mm	6+1	66.1	26	1260	0.03	10313	10641	10224	10601
78532	Outlaw Beadlock	Satin Black	17x7	4x136/4x137	5	+25mm	4.5+2.5	110.2	24	1260	1.55	10311	10641	10221	10601
78533	Outlaw Beadlock	Raw	17x7	4x136/4x137	5	+25mm	4.5+2.5	110.2	24	1260	1.55	10311	10641	10224	10601
78534	Outlaw Beadlock	Satin Black	17x7	4x156	5	+25mm	4.5+2.5	132	24	1260	1.55	10311	10641	10221	10601
78535	Outlaw Beadlock	Raw	17x7	4x156	5	+25mm	4.5+2.5	132	24	1260	1.55	10311	10641	10224	10601
78538	Outlaw R Beadlock	Satin Black Contrast Cut	15x7	5x114.3 (5x4.5)	6.3	+61mm	6+1	66.1	19	1260	0.26	10313	10641	10212	10601
78539	Outlaw R Beadlock	Satin Black Contrast Cut	17x7	5x114.3 (5x4.5)	6.3	+61mm	6+1	66.1	26	1260	0.03	10313	10641	10222	10601
78548	Outlaw 6R Beadlock	Satin Black	15x7	6x139.7 (6x5.5)	6.3	+61mm	6+1	78.1	19.78	1260	0.29	10324	10641	10211	10601
78549	Outlaw 6R Beadlock	Raw	15x7	6x139.7 (6x5.5)	6.3	+61mm	6+1	78.1	19.48	1260	0.29	10324	10641	10214	10601
78550	Outlaw 6R Beadlock	Satin Black Contrast Cut	15x7	6x139.7 (6x5.5)	6.3	+61mm	6+1	78.1	19.04	1260	0.29	10324	10641	10212	10601

SKU	Model	Finish	Wheel Size	Bolt Pattern	Backspace (in)	Offset (mm)	Offset (in)	Center Bore	Weight (lbs)	Load Rating	Lip Size	Cap SKU	Cap Hardware SKU	BL Ring SKU	BL Hardware SKU
78513	Outlaw Beadlock	Satin Black	15x6	4x136/4x137	5	+38mm	4.5+1.5	110.2	17	1000	0.67	10311	10641	10211	10601
78514	Outlaw Beadlock	Raw	15x6	4x136/4x137	5	+38mm	4.5+1.5	110.2	17	1000	0.67	10311	10641	10214	10601
78516	Outlaw Beadlock	Satin Black	15x6	4x156	5	+38mm	4.5+1.5	132	17	1000	0.67	10311	10641	10211	10601
78517	Outlaw Beadlock	Raw	15x6	4x156	5	+38mm	4.5+1.5	132	17	1000	0.67	10311	10641	10214	10601
78519	Outlaw R Beadlock	Satin Black	15x7	5x114.3 (5x4.5)	6.3	+61mm	6+1	66.1	19	1260	0.26	10313	10641	10211	10601
78520	Outlaw R Beadlock	Raw	15x7	5x114.3 (5x4.5)	6.3	+61mm	6+1	66.1	19	1260	0.26	10313	10641	10214	10601
78530	Outlaw R Beadlock	Satin Black	17x7	5x114.3 (5x4.5)	6.3	+61mm	6+1	66.1	26	1260	0.03	10313	10641	10221	10601
78531	Outlaw R Beadlock	Raw	17x7	5x114.3 (5x4.5)	6.3	+61mm	6+1	66.1	26	1260	0.03	10313	10641	10224	10601
78532	Outlaw Beadlock	Satin Black	17x7	4x136/4x137	5	+25mm	4.5+2.5	110.2	24	1260	1.55	10311	10641	10221	10601
78533	Outlaw Beadlock	Raw	17x7	4x136/4x137	5	+25mm	4.5+2.5	110.2	24	1260	1.55	10311	10641	10224	10601
78534	Outlaw Beadlock	Satin Black	17x7	4x156	5	+25mm	4.5+2.5	132	24	1260	1.55	10311	10641	10221	10601
78535	Outlaw Beadlock	Raw	17x7	4x156	5	+25mm	4.5+2.5	132	24	1260	1.55	10311	10641	10224	10601
78538	Outlaw R Beadlock	Satin Black Contrast Cut	15x7	5x114.3 (5x4.5)	6.3	+61mm	6+1	66.1	19	1260	0.26	10313	10641	10212	10601
78539	Outlaw R Beadlock	Satin Black Contrast Cut	17x7	5x114.3 (5x4.5)	6.3	+61mm	6+1	66.1	26	1260	0.03	10313	10641	10222	10601
78548	Outlaw 6R Beadlock	Satin Black	15x7	6x139.7 (6x5.5)	6.3	+61mm	6+1	78.1	19.78	1260	0.29	10324	10641	10211	10601
78549	Outlaw 6R Beadlock	Raw	15x7	6x139.7 (6x5.5)	6.3	+61mm	6+1	78.1	19.48	1260	0.29	10324	10641	10214	10601
78550	Outlaw 6R Beadlock	Satin Black Contrast Cut	15x7	6x139.7 (6x5.5)	6.3	+61mm	6+1	78.1	19.04	1260	0.29	10324	10641	10212	10601

5%
