Name: Delta 6R Beadlock | Raw
Brand: METAL FX OFFROAD
SKU: 78346
Price: 439.0 USD
Availability: InStock

starting at $439.00

Additional Finishes

SIZE | OFFSET | BOLT PATTERN | SKU#

15x7 | +38mm/5+2 | 6x5.5 | 78346 (Maverick R)

15x10 | +38mm/6.5+3.5 | 6x5.5 | 78347 (Maverick R)

78346

In Stock

Free Shipping on orders of 4+ wheels*

NOTE: All Metal FX Offroad wheels require our lug nuts

Total

[{"id":45931386732596,"title":"15x7 | +38mm\/5+2 | 6x5.5 | 78346 (Maverick R)","option1":"15x7 | +38mm\/5+2 | 6x5.5 | 78346 (Maverick R)","option2":null,"option3":null,"sku":"78346","requires_shipping":true,"taxable":true,"featured_image":{"id":33994068361268,"product_id":7755864670260,"position":2,"created_at":"2025-03-19T11:32:18-07:00","updated_at":"2025-03-19T11:32:24-07:00","alt":null,"width":2400,"height":2400,"src":"\/\/metalfxoffroad.com\/cdn\/shop\/files\/15x7Delta6RRaw.340.jpg?v=1742409144","variant_ids":[45931386732596]},"available":true,"name":"Delta 6R Beadlock | Raw - 15x7 | +38mm\/5+2 | 6x5.5 | 78346 (Maverick R)","public_title":"15x7 | +38mm\/5+2 | 6x5.5 | 78346 (Maverick R)","options":["15x7 | +38mm\/5+2 | 6x5.5 | 78346 (Maverick R)"],"price":43900,"weight":454,"compare_at_price":null,"inventory_management":"shopify","barcode":"","featured_media":{"alt":null,"id":25984802291764,"position":2,"preview_image":{"aspect_ratio":1.0,"height":2400,"width":2400,"src":"\/\/metalfxoffroad.com\/cdn\/shop\/files\/15x7Delta6RRaw.340.jpg?v=1742409144"}},"requires_selling_plan":false,"selling_plan_allocations":[]},{"id":45931386765364,"title":"15x10 | +38mm\/6.5+3.5 | 6x5.5 | 78347 (Maverick R)","option1":"15x10 | +38mm\/6.5+3.5 | 6x5.5 | 78347 (Maverick R)","option2":null,"option3":null,"sku":"78347","requires_shipping":true,"taxable":true,"featured_image":{"id":33994068688948,"product_id":7755864670260,"position":1,"created_at":"2025-03-19T11:32:20-07:00","updated_at":"2025-03-19T11:32:24-07:00","alt":null,"width":2400,"height":2400,"src":"\/\/metalfxoffroad.com\/cdn\/shop\/files\/15x10Delta6RRaw.341.jpg?v=1742409144","variant_ids":[45931386765364]},"available":true,"name":"Delta 6R Beadlock | Raw - 15x10 | +38mm\/6.5+3.5 | 6x5.5 | 78347 (Maverick R)","public_title":"15x10 | +38mm\/6.5+3.5 | 6x5.5 | 78347 (Maverick R)","options":["15x10 | +38mm\/6.5+3.5 | 6x5.5 | 78347 (Maverick R)"],"price":44900,"weight":454,"compare_at_price":null,"inventory_management":"shopify","barcode":"","featured_media":{"alt":null,"id":25984802390068,"position":1,"preview_image":{"aspect_ratio":1.0,"height":2400,"width":2400,"src":"\/\/metalfxoffroad.com\/cdn\/shop\/files\/15x10Delta6RRaw.341.jpg?v=1742409144"}},"requires_selling_plan":false,"selling_plan_allocations":[]}]

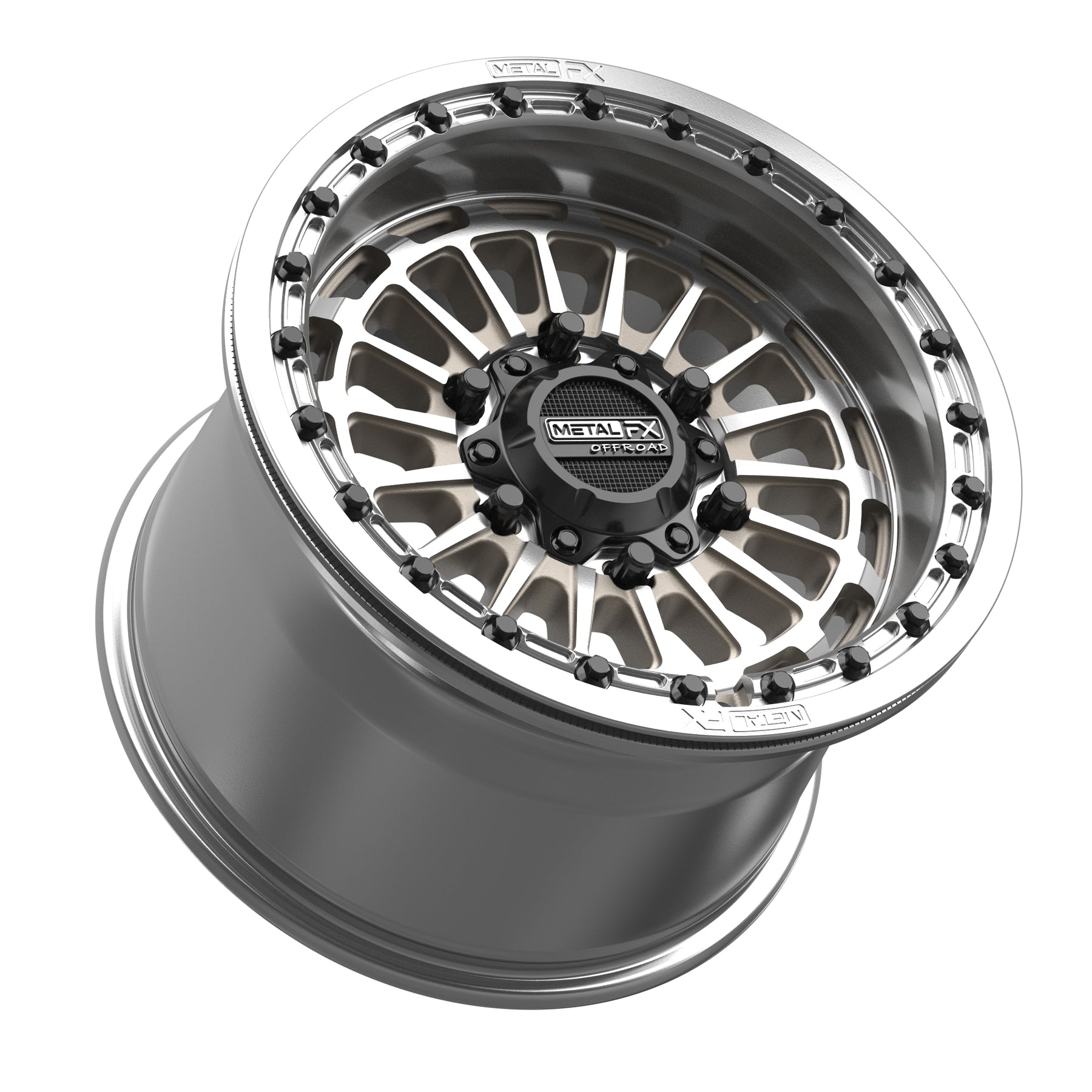

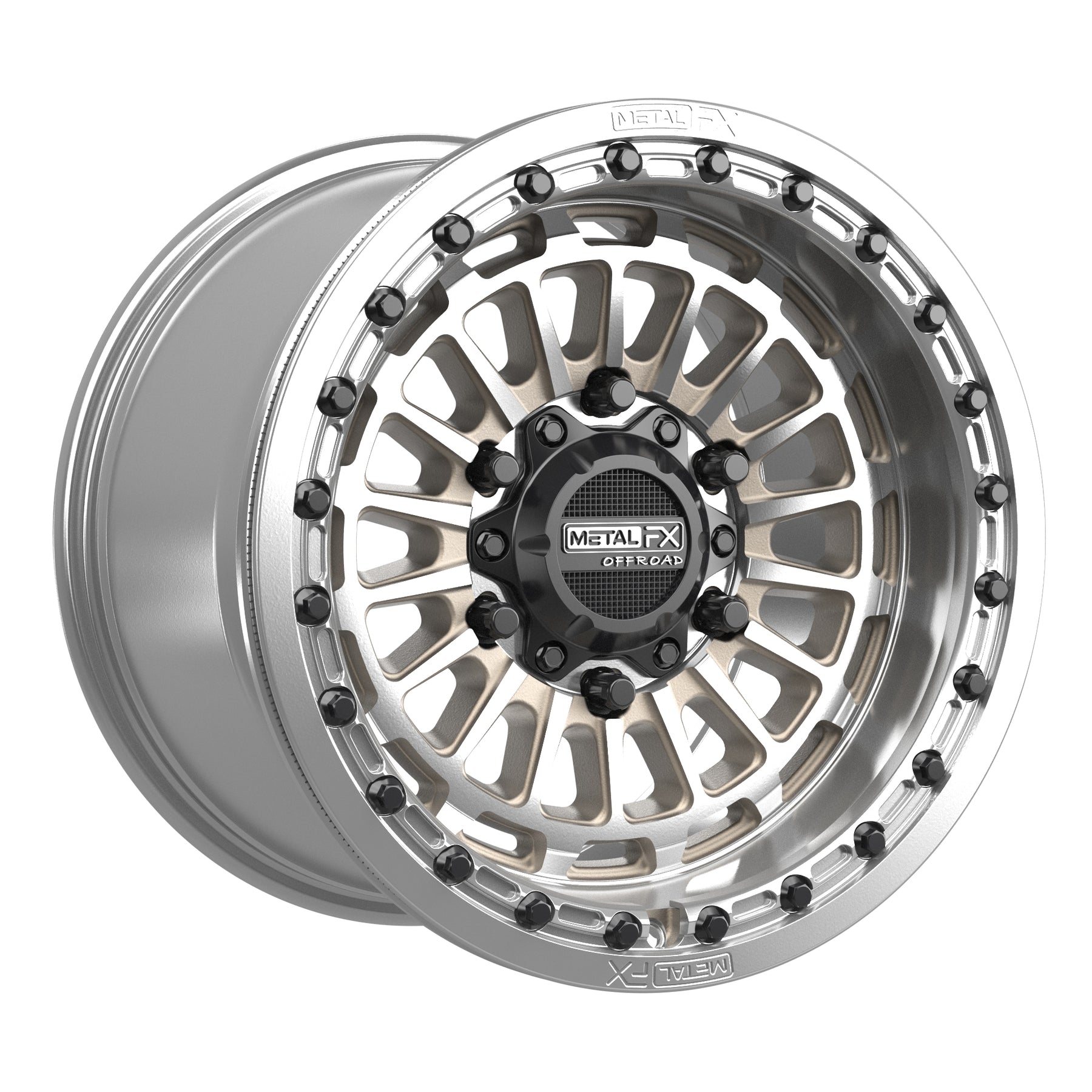

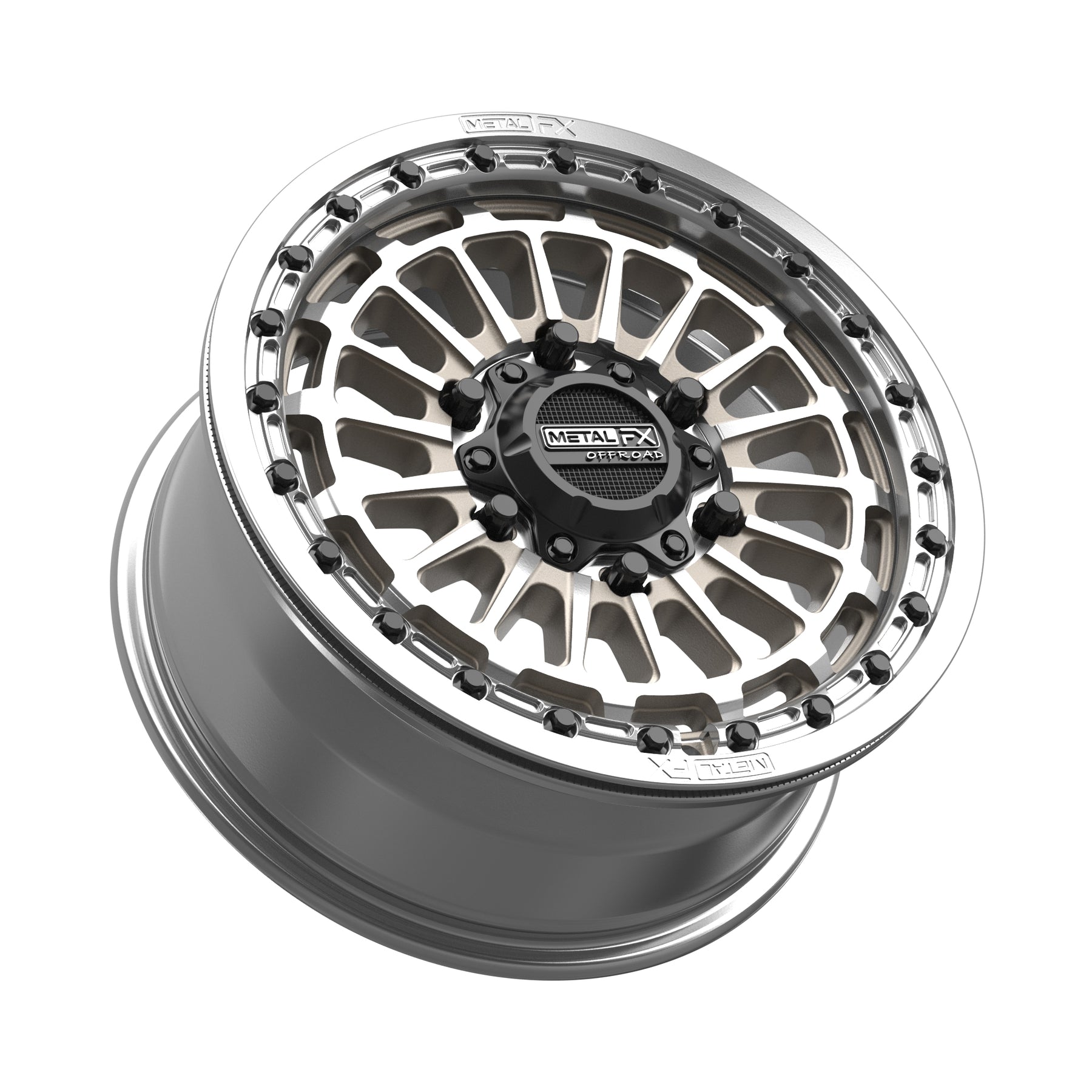

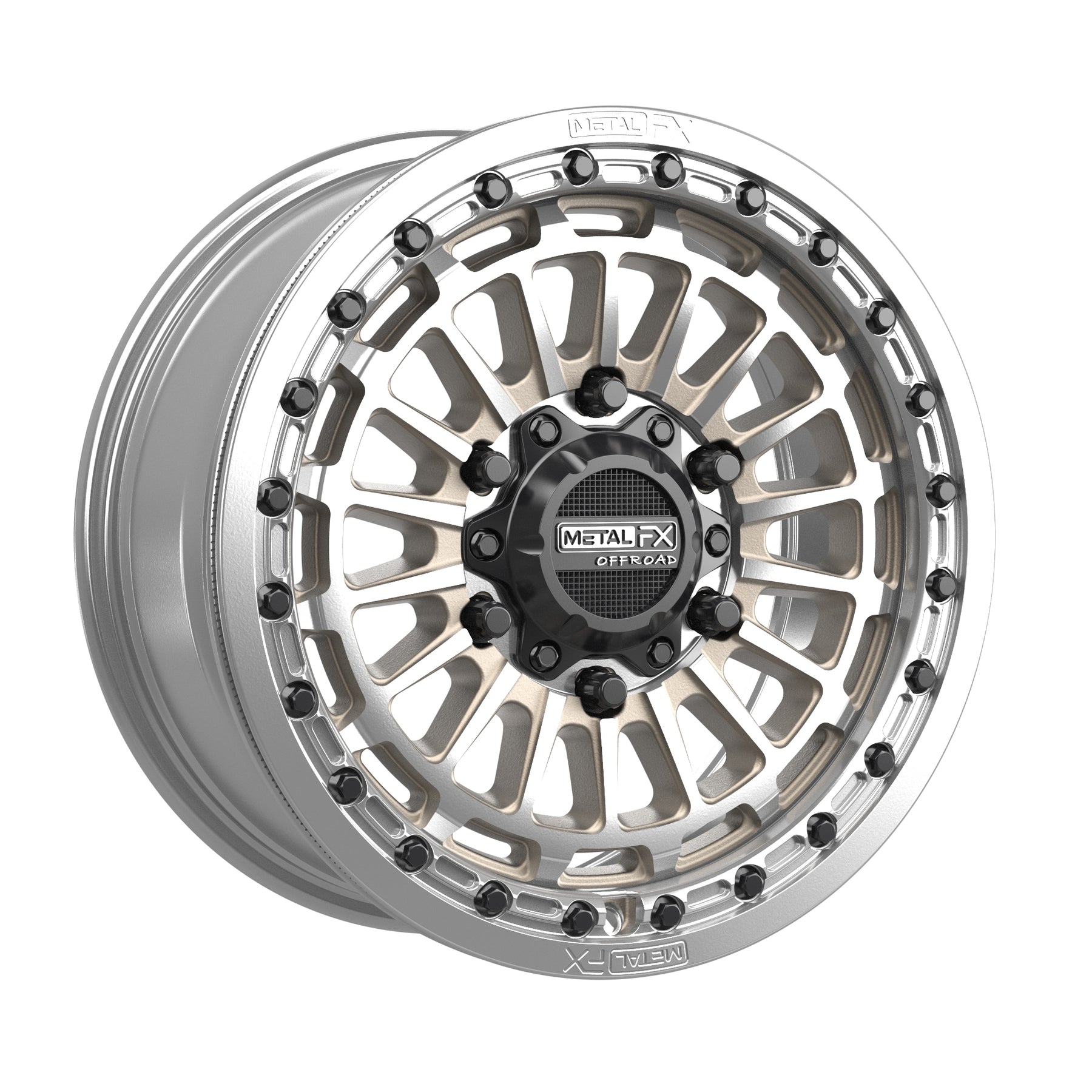

The Metal FX Offroad Delta 6R UTV Wheel combines our technical expertise with uncompromised attention to detail creating the ultimate in style and performance. The design of the Delta 6R includes a unique concave Center and a 6061- T6 Forged Aluminum Beadlock for enhanced strength and durability. Each model in the Metal FX Offroad Delta 6R Series is designed specifically for Can-Am Maverick R 6-Lug platforms.

- Super strong 6061-T6 Aluminum Beadlock Ring
- Lightweight 20lbs - 15x7 / 22lbs - 15x10

These wheels will fit the following machines:

Can-Am:
- Maverick R (2024+)
- Maverick R X (2024+)
- Maverick R X RS (2024+)
- Maverick R Max (2025)
- Maverick R Max X (2025)
- Maverick R Max X RS (2025)

FITMENT
15x7 +38mm
These wheels will make the machine 3.25" wider than factory with the factory tires. Aftermarket tires may cause width gain to vary.

15x10+38mm
These wheels will make the machine 3.25" wider than factory with the factory tires. Aftermarket tires may cause width gain to vary.

15x7 +38mm Delta 6R w/ 35” Roxxillas
= 83” total width

15x10 +38mm Delta 6R w/ 35” Roxxillas
= 83” total width

15x7 +38mm Delta 6R w/ 33x10 SS360
= 79” total width

15x10 +38mm Delta 6R w/ 33x12 SS360
= 82” total width

If you’re looking for a narrower dirt setup, our 15x7 +61mm Outlaw 6R wheels measure 2” narrower in total width.

Before installing

Be sure to remove the mud scrapers prior to installation of these wheels to avoid damage.

SPECIFICATIONS

SKU	Model	Finish	Wheel Size	Bolt Pattern	Backspace (in)	Offset (mm)	Offset (in)	Center Bore	Weight (lbs)	Load Rating	Lip Size	Cap SKU	Cap Hardware SKU	BL Ring SKU	BL Hardware SKU
78301	Delta Beadlock	Satin Black	15x7	4x136/4x137	5	+25mm	4.5+2.5	110.2	17	1000	1.35	10311	10640	10201	10601
78302	Delta Beadlock	Satin Black Contrast Cut	15x7	4x136/4x137	5	+25mm	4.5+2.5	110.2	17	1000	1.35	10311	10640	10202	10601
78303	Delta Beadlock	Gunmetal Contrast Cut	15x7	4x136/4x137	5	+25mm	4.5+2.5	110.2	17	1000	1.35	10312	10641	10203	10602
78304	Delta Beadlock	Satin Black	15x10	4x136/4x137	5.5	0mm	5+5	110.2	19	1000	3.83	10311	10640	10201	10601
78305	Delta Beadlock	Satin Black Contrast Cut	15x10	4x136/4x137	5.5	0mm	5+5	110.2	19	1000	3.83	10311	10640	10202	10601
78306	Delta Beadlock	Gunmetal Contrast Cut	15x10	4x136/4x137	5.5	0mm	5+5	110.2	19	1000	3.83	10312	10641	10203	10602
78307	Delta Beadlock	Satin Black	15x7	4x156	5	+25mm	4.5+2.5	132	17	1000	1.35	10311	10640	10201	10601
78308	Delta Beadlock	Satin Black Contrast Cut	15x7	4x156	5	+25mm	4.5+2.5	132	17	1000	1.35	10311	10640	10202	10601
78309	Delta Beadlock	Gunmetal Contrast Cut	15x7	4x156	5	+25mm	4.5+2.5	132	17	1000	1.35	10312	10641	10203	10602
78310	Delta Beadlock	Satin Black	15x10	4x156	5.5	0mm	5+5	132	19	1000	3.83	10311	10640	10201	10601
78311	Delta Beadlock	Satin Black Contrast Cut	15x10	4x156	5.5	0mm	5+5	132	19	1000	3.83	10311	10640	10202	10601
78312	Delta Beadlock	Gunmetal Contrast Cut	15x10	4x156	5.5	0mm	5+5	132	19	1000	3.83	10312	10641	10203	10602
78320	Delta R Beadlock	Satin Black	15x7	5x114.3 (5x4.5)	5.5	+38mm	5+2	66.1	17.9	1260	0.96	10313	10640	10201	10601
78321	Delta R Beadlock	Satin Black	15x10	5x114.3 (5x4.5)	5.5	0mm	5+5	66.1	19.8	1260	3.5	10313	10640	10201	10601
78322	Delta R Beadlock	Satin Black Contrast Cut	15x7	5x114.3 (5x4.5)	5.5	+38mm	5+2	66.1	17.9	1260	0.96	10313	10640	10202	10601
78323	Delta R Beadlock	Satin Black Contrast Cut	15x10	5x114.3 (5x4.5)	5.5	0mm	5+5	66.1	19.8	1260	3.5	10313	10640	10202	10601
78324	Delta R Beadlock	Gunmetal Contrast Cut	15x7	5x114.3 (5x4.5)	5.5	+38mm	5+2	66.1	17.9	1260	0.96	10320	10641	10203	10602
78325	Delta R Beadlock	Gunmetal Contrast Cut	15x10	5x114.3 (5x4.5)	5.5	0mm	5+5	66.1	19.8	1260	3.5	10320	10641	10203	10602
78326	Delta R Beadlock	Raw	15x7	5x114.3 (5x4.5)	5.5	+38mm	5+2	66.1	17.9	1260	0.96	10313	10640	10204	10601
78327	Delta R Beadlock	Raw	15x10	5x114.3 (5x4.5)	5.5	0mm	5+5	66.1	19.8	1260	3.5	10313	10640	10204	10601
78340	Delta 6R Beadlock	Satin Black	15x7	6x139.7 (6x5.5)	5.4	+38mm	5+2	78.1	19.8	1260	1.01	10324	10640	10211	10601
78341	Delta 6R Beadlock	Satin Black	15x10	6x139.7 (6x5.5)	6.9	+38mm	6.5+3.5	78.1	22.1	1260	2.47	10324	10640	10211	10601
78342	Delta 6R Beadlock	Satin Black Contrast Cut	15x7	6x139.7 (6x5.5)	5.4	+38mm	5+2	78.1	19.4	1260	1.01	10324	10640	10212	10601
78343	Delta 6R Beadlock	Satin Black Contrast Cut	15x10	6x139.7 (6x5.5)	6.9	+38mm	6.5+3.5	78.1	21.6	1260	2.47	10324	10640	10212	10601
78344	Delta 6R Beadlock	Gunmetal Contrast Cut	15x7	6x139.7 (6x5.5)	5.4	+38mm	5+2	78.1	19.4	1260	1.01	10325	10641	10213	10602
78345	Delta 6R Beadlock	Gunmetal Contrast Cut	15x10	6x139.7 (6x5.5)	6.9	+38mm	6.5+3.5	78.1	21.6	1260	2.47	10325	10641	10213	10602
78346	Delta 6R Beadlock	Raw	15x7	6x139.7 (6x5.5)	5.4	+38mm	5+2	78.1	19.4	1260	1.01	10324	10640	10214	10601
78347	Delta 6R Beadlock	Raw	15x10	6x139.7 (6x5.5)	6.9	+38mm	6.5+3.5	78.1	21.6	1260	2.47	10324	10640	10214	10601

SKU	Model	Finish	Wheel Size	Bolt Pattern	Backspace (in)	Offset (mm)	Offset (in)	Center Bore	Weight (lbs)	Load Rating	Lip Size	Cap SKU	Cap Hardware SKU	BL Ring SKU	BL Hardware SKU
78301	Delta Beadlock	Satin Black	15x7	4x136/4x137	5	+25mm	4.5+2.5	110.2	17	1000	1.35	10311	10640	10201	10601
78302	Delta Beadlock	Satin Black Contrast Cut	15x7	4x136/4x137	5	+25mm	4.5+2.5	110.2	17	1000	1.35	10311	10640	10202	10601
78303	Delta Beadlock	Gunmetal Contrast Cut	15x7	4x136/4x137	5	+25mm	4.5+2.5	110.2	17	1000	1.35	10312	10641	10203	10602
78304	Delta Beadlock	Satin Black	15x10	4x136/4x137	5.5	0mm	5+5	110.2	19	1000	3.83	10311	10640	10201	10601
78305	Delta Beadlock	Satin Black Contrast Cut	15x10	4x136/4x137	5.5	0mm	5+5	110.2	19	1000	3.83	10311	10640	10202	10601
78306	Delta Beadlock	Gunmetal Contrast Cut	15x10	4x136/4x137	5.5	0mm	5+5	110.2	19	1000	3.83	10312	10641	10203	10602
78307	Delta Beadlock	Satin Black	15x7	4x156	5	+25mm	4.5+2.5	132	17	1000	1.35	10311	10640	10201	10601
78308	Delta Beadlock	Satin Black Contrast Cut	15x7	4x156	5	+25mm	4.5+2.5	132	17	1000	1.35	10311	10640	10202	10601
78309	Delta Beadlock	Gunmetal Contrast Cut	15x7	4x156	5	+25mm	4.5+2.5	132	17	1000	1.35	10312	10641	10203	10602
78310	Delta Beadlock	Satin Black	15x10	4x156	5.5	0mm	5+5	132	19	1000	3.83	10311	10640	10201	10601
78311	Delta Beadlock	Satin Black Contrast Cut	15x10	4x156	5.5	0mm	5+5	132	19	1000	3.83	10311	10640	10202	10601
78312	Delta Beadlock	Gunmetal Contrast Cut	15x10	4x156	5.5	0mm	5+5	132	19	1000	3.83	10312	10641	10203	10602
78320	Delta R Beadlock	Satin Black	15x7	5x114.3 (5x4.5)	5.5	+38mm	5+2	66.1	17.9	1260	0.96	10313	10640	10201	10601
78321	Delta R Beadlock	Satin Black	15x10	5x114.3 (5x4.5)	5.5	0mm	5+5	66.1	19.8	1260	3.5	10313	10640	10201	10601
78322	Delta R Beadlock	Satin Black Contrast Cut	15x7	5x114.3 (5x4.5)	5.5	+38mm	5+2	66.1	17.9	1260	0.96	10313	10640	10202	10601
78323	Delta R Beadlock	Satin Black Contrast Cut	15x10	5x114.3 (5x4.5)	5.5	0mm	5+5	66.1	19.8	1260	3.5	10313	10640	10202	10601
78324	Delta R Beadlock	Gunmetal Contrast Cut	15x7	5x114.3 (5x4.5)	5.5	+38mm	5+2	66.1	17.9	1260	0.96	10320	10641	10203	10602
78325	Delta R Beadlock	Gunmetal Contrast Cut	15x10	5x114.3 (5x4.5)	5.5	0mm	5+5	66.1	19.8	1260	3.5	10320	10641	10203	10602
78326	Delta R Beadlock	Raw	15x7	5x114.3 (5x4.5)	5.5	+38mm	5+2	66.1	17.9	1260	0.96	10313	10640	10204	10601
78327	Delta R Beadlock	Raw	15x10	5x114.3 (5x4.5)	5.5	0mm	5+5	66.1	19.8	1260	3.5	10313	10640	10204	10601
78340	Delta 6R Beadlock	Satin Black	15x7	6x139.7 (6x5.5)	5.4	+38mm	5+2	78.1	19.8	1260	1.01	10324	10640	10211	10601
78341	Delta 6R Beadlock	Satin Black	15x10	6x139.7 (6x5.5)	6.9	+38mm	6.5+3.5	78.1	22.1	1260	2.47	10324	10640	10211	10601
78342	Delta 6R Beadlock	Satin Black Contrast Cut	15x7	6x139.7 (6x5.5)	5.4	+38mm	5+2	78.1	19.4	1260	1.01	10324	10640	10212	10601
78343	Delta 6R Beadlock	Satin Black Contrast Cut	15x10	6x139.7 (6x5.5)	6.9	+38mm	6.5+3.5	78.1	21.6	1260	2.47	10324	10640	10212	10601
78344	Delta 6R Beadlock	Gunmetal Contrast Cut	15x7	6x139.7 (6x5.5)	5.4	+38mm	5+2	78.1	19.4	1260	1.01	10325	10641	10213	10602
78345	Delta 6R Beadlock	Gunmetal Contrast Cut	15x10	6x139.7 (6x5.5)	6.9	+38mm	6.5+3.5	78.1	21.6	1260	2.47	10325	10641	10213	10602
78346	Delta 6R Beadlock	Raw	15x7	6x139.7 (6x5.5)	5.4	+38mm	5+2	78.1	19.4	1260	1.01	10324	10640	10214	10601
78347	Delta 6R Beadlock	Raw	15x10	6x139.7 (6x5.5)	6.9	+38mm	6.5+3.5	78.1	21.6	1260	2.47	10324	10640	10214	10601
