R-Series

Delta R Beadlock | Gunmetal Contrast Cut

Dunes / Desert / Moderate Rocks

starting at $449.00
/
Additional Finishes
SIZE | OFFSET | BOLT PATTERN | SKU#

78324

  • In Stock
  • Inventory on the way
  • Free Shipping on orders of 4+ wheels*
NOTE: All Metal FX Offroad wheels require our lug nuts
Total
Recommended Products
Spline Drive Lug Nuts + Socket

M12x1.5 & M12x1.25 Lug nuts for UTV Wheels

$35.00

Recommended Item Image
Qty

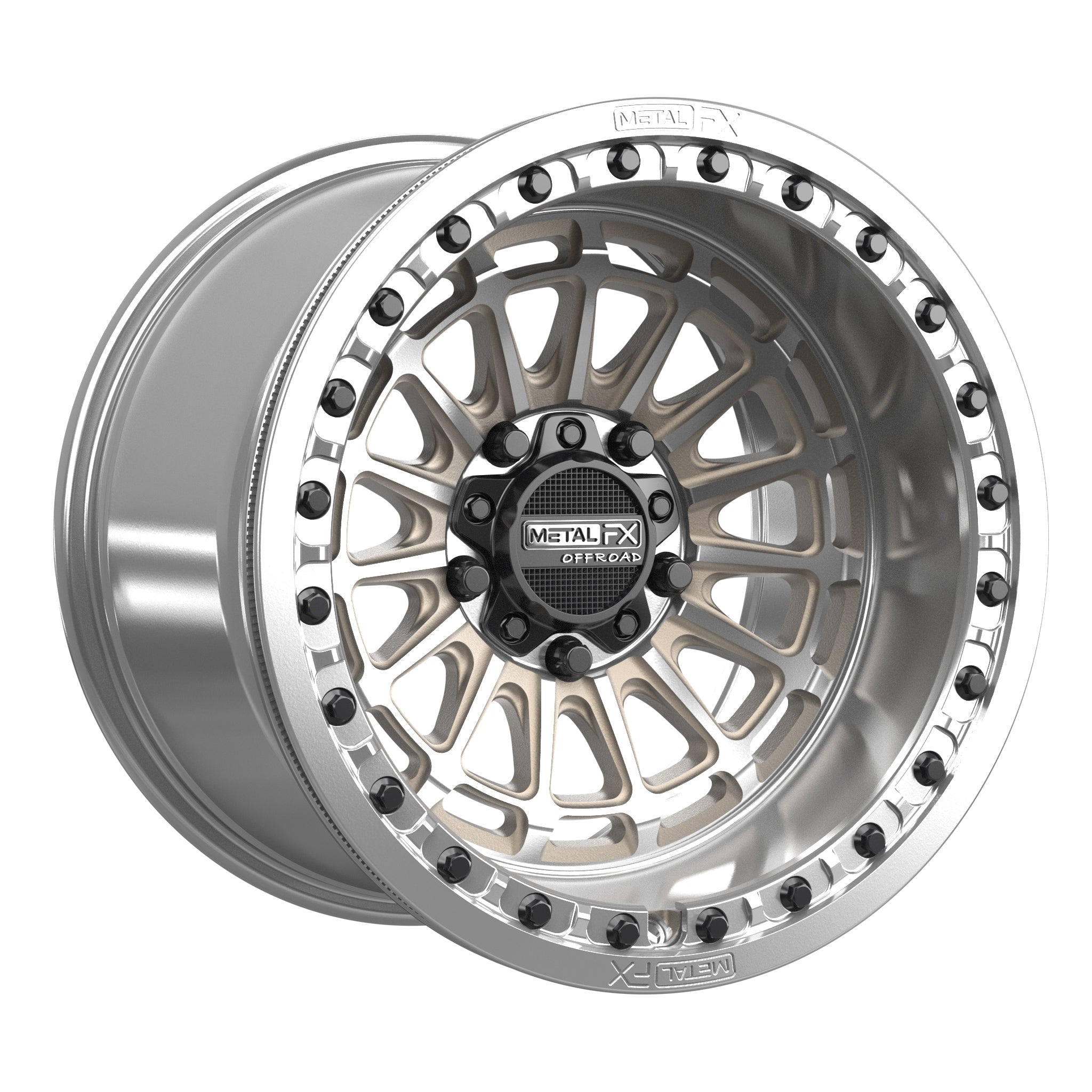

The Metal FX Offroad Delta R UTV Wheel combines our technical expertise with uncompromised attention to detail creating the ultimate in style and performance. The design of the Delta R includes a unique concave center and a 6061-T6 Billet Beadlock for enhanced strength and durability. Each model in the Metal FX Offroad R-Series is designed specifically for Polaris 5-Lug &Segway Super Villain platforms.

- Super strong 6061-T6 Aluminum Beadlock Ring
- Lightweight 18lbs - 15x7 / 20lbs - 15x10

These wheels will fit the following machines:

Polaris:
- Ranger XD 1500
- RZR Pro R
- RZR Pro S
- RZR XP S
- RZR Turbo R
- Xpedition ADV
- Xpedition XP

Kawasaki:
- Teryx H2 (15x10 ONLY), **Requires Center Cap Spacer #10336
https://metalfxoffroad.com/products/plastic-center-cap-spacer

Segway:
- Super Villain

CF Moto:
- U10 Pro

*Before installing*

Be sure to remove the mud scrapers prior to installation of these wheels to avoid damage.
Download: Mud Scraper Removal Instructions - Here!

  • SPECIFICATIONS
SKU Model Finish Wheel Size Bolt Pattern Backspace (in) Offset (mm) Offset (in) Center Bore Weight (lbs) Load Rating Lip Size Cap SKU Cap Hardware SKU BL Ring SKU BL Hardware SKU
78301Delta BeadlockSatin Black15x74x136/4x1375+25mm4.5+2.5110.21710001.3510311106401020110601
78302Delta BeadlockSatin Black Contrast Cut15x74x136/4x1375+25mm4.5+2.5110.21710001.3510311106401020210601
78303Delta BeadlockGunmetal Contrast Cut15x74x136/4x1375+25mm4.5+2.5110.21710001.3510312106411020310602
78304Delta BeadlockSatin Black15x104x136/4x1375.50mm5+5110.21910003.8310311106401020110601
78305Delta BeadlockSatin Black Contrast Cut15x104x136/4x1375.50mm5+5110.21910003.8310311106401020210601
78306Delta BeadlockGunmetal Contrast Cut15x104x136/4x1375.50mm5+5110.21910003.8310312106411020310602
78307Delta BeadlockSatin Black15x74x1565+25mm4.5+2.51321710001.3510311106401020110601
78308Delta BeadlockSatin Black Contrast Cut15x74x1565+25mm4.5+2.51321710001.3510311106401020210601
78309Delta BeadlockGunmetal Contrast Cut15x74x1565+25mm4.5+2.51321710001.3510312106411020310602
78310Delta BeadlockSatin Black15x104x1565.50mm5+51321910003.8310311106401020110601
78311Delta BeadlockSatin Black Contrast Cut15x104x1565.50mm5+51321910003.8310311106401020210601
78312Delta BeadlockGunmetal Contrast Cut15x104x1565.50mm5+51321910003.8310312106411020310602
78320Delta R BeadlockSatin Black15x75x114.3 (5x4.5)5.5+38mm5+266.117.912600.9610313106401020110601
78321Delta R BeadlockSatin Black15x105x114.3 (5x4.5)5.50mm5+566.119.812603.510313106401020110601
78322Delta R BeadlockSatin Black Contrast Cut15x75x114.3 (5x4.5)5.5+38mm5+266.117.912600.9610313106401020210601
78323Delta R BeadlockSatin Black Contrast Cut15x105x114.3 (5x4.5)5.50mm5+566.119.812603.510313106401020210601
78324Delta R BeadlockGunmetal Contrast Cut15x75x114.3 (5x4.5)5.5+38mm5+266.117.912600.9610320106411020310602
78325Delta R BeadlockGunmetal Contrast Cut15x105x114.3 (5x4.5)5.50mm5+566.119.812603.510320106411020310602
78326Delta R BeadlockRaw15x75x114.3 (5x4.5)5.5+38mm5+266.117.912600.9610313106401020410601
78327Delta R BeadlockRaw15x105x114.3 (5x4.5)5.50mm5+566.119.812603.510313106401020410601
78340Delta 6R BeadlockSatin Black15x76x139.7 (6x5.5)5.4+38mm5+278.119.812601.0110324106401021110601
78341Delta 6R BeadlockSatin Black15x106x139.7 (6x5.5)6.9+38mm6.5+3.578.122.112602.4710324106401021110601
78342Delta 6R BeadlockSatin Black Contrast Cut15x76x139.7 (6x5.5)5.4+38mm5+278.119.412601.0110324106401021210601
78343Delta 6R BeadlockSatin Black Contrast Cut15x106x139.7 (6x5.5)6.9+38mm6.5+3.578.121.612602.4710324106401021210601
78344Delta 6R BeadlockGunmetal Contrast Cut15x76x139.7 (6x5.5)5.4+38mm5+278.119.412601.0110325106411021310602
78345Delta 6R BeadlockGunmetal Contrast Cut15x106x139.7 (6x5.5)6.9+38mm6.5+3.578.121.612602.4710325106411021310602
78346Delta 6R BeadlockRaw15x76x139.7 (6x5.5)5.4+38mm5+278.119.412601.0110324106401021410601
78347Delta 6R BeadlockRaw15x106x139.7 (6x5.5)6.9+38mm6.5+3.578.121.612602.4710324106401021410601
