Name: Delta 6R Beadlock | Satin Black Contrast Cut
Brand: METAL FX OFFROAD
SKU: 78342
Price: 449.0 USD
Availability: InStock

Delta 6R Beadlock | Satin Black Contrast Cut

starting at $449.00

Additional Finishes

SIZE | OFFSET | BOLT PATTERN | SKU#

15x7 | +38mm/5+2 | 6x5.5 | 78342 (Maverick R)

15x10 | +38mm/6.5+3.5 | 6x5.5 | 78343 (Maverick R)

78342

Order Soon - Only 1 left

Free Shipping on orders of 4+ wheels*

NOTE: All Metal FX Offroad wheels require our lug nuts

Total

[{"id":42336536199220,"title":"15x7 | +38mm\/5+2 | 6x5.5 | 78342 (Maverick R)","option1":"15x7 | +38mm\/5+2 | 6x5.5 | 78342 (Maverick R)","option2":null,"option3":null,"sku":"78342","requires_shipping":true,"taxable":true,"featured_image":{"id":32964519723060,"product_id":7254054076468,"position":3,"created_at":"2024-10-01T16:49:32-07:00","updated_at":"2024-10-01T16:49:33-07:00","alt":null,"width":1200,"height":1200,"src":"\/\/metalfxoffroad.com\/cdn\/shop\/files\/15x7Delta6R.52.jpg?v=1727826573","variant_ids":[42336536199220]},"available":true,"name":"Delta 6R Beadlock | Satin Black Contrast Cut - 15x7 | +38mm\/5+2 | 6x5.5 | 78342 (Maverick R)","public_title":"15x7 | +38mm\/5+2 | 6x5.5 | 78342 (Maverick R)","options":["15x7 | +38mm\/5+2 | 6x5.5 | 78342 (Maverick R)"],"price":44900,"weight":454,"compare_at_price":null,"inventory_management":"shopify","barcode":null,"featured_media":{"alt":null,"id":25277297492020,"position":3,"preview_image":{"aspect_ratio":1.0,"height":1200,"width":1200,"src":"\/\/metalfxoffroad.com\/cdn\/shop\/files\/15x7Delta6R.52.jpg?v=1727826573"}},"requires_selling_plan":true,"selling_plan_allocations":[]},{"id":42336536231988,"title":"15x10 | +38mm\/6.5+3.5 | 6x5.5 | 78343 (Maverick R)","option1":"15x10 | +38mm\/6.5+3.5 | 6x5.5 | 78343 (Maverick R)","option2":null,"option3":null,"sku":"78343","requires_shipping":true,"taxable":true,"featured_image":{"id":32963431039028,"product_id":7254054076468,"position":1,"created_at":"2024-10-01T14:26:48-07:00","updated_at":"2024-10-01T14:26:49-07:00","alt":null,"width":2400,"height":2400,"src":"\/\/metalfxoffroad.com\/cdn\/shop\/files\/15x10Delta6R.1451.jpg?v=1727818009","variant_ids":[42336536231988]},"available":false,"name":"Delta 6R Beadlock | Satin Black Contrast Cut - 15x10 | +38mm\/6.5+3.5 | 6x5.5 | 78343 (Maverick R)","public_title":"15x10 | +38mm\/6.5+3.5 | 6x5.5 | 78343 (Maverick R)","options":["15x10 | +38mm\/6.5+3.5 | 6x5.5 | 78343 (Maverick R)"],"price":45900,"weight":454,"compare_at_price":null,"inventory_management":"shopify","barcode":null,"featured_media":{"alt":null,"id":25276629876788,"position":1,"preview_image":{"aspect_ratio":1.0,"height":2400,"width":2400,"src":"\/\/metalfxoffroad.com\/cdn\/shop\/files\/15x10Delta6R.1451.jpg?v=1727818009"}},"requires_selling_plan":true,"selling_plan_allocations":[]}]

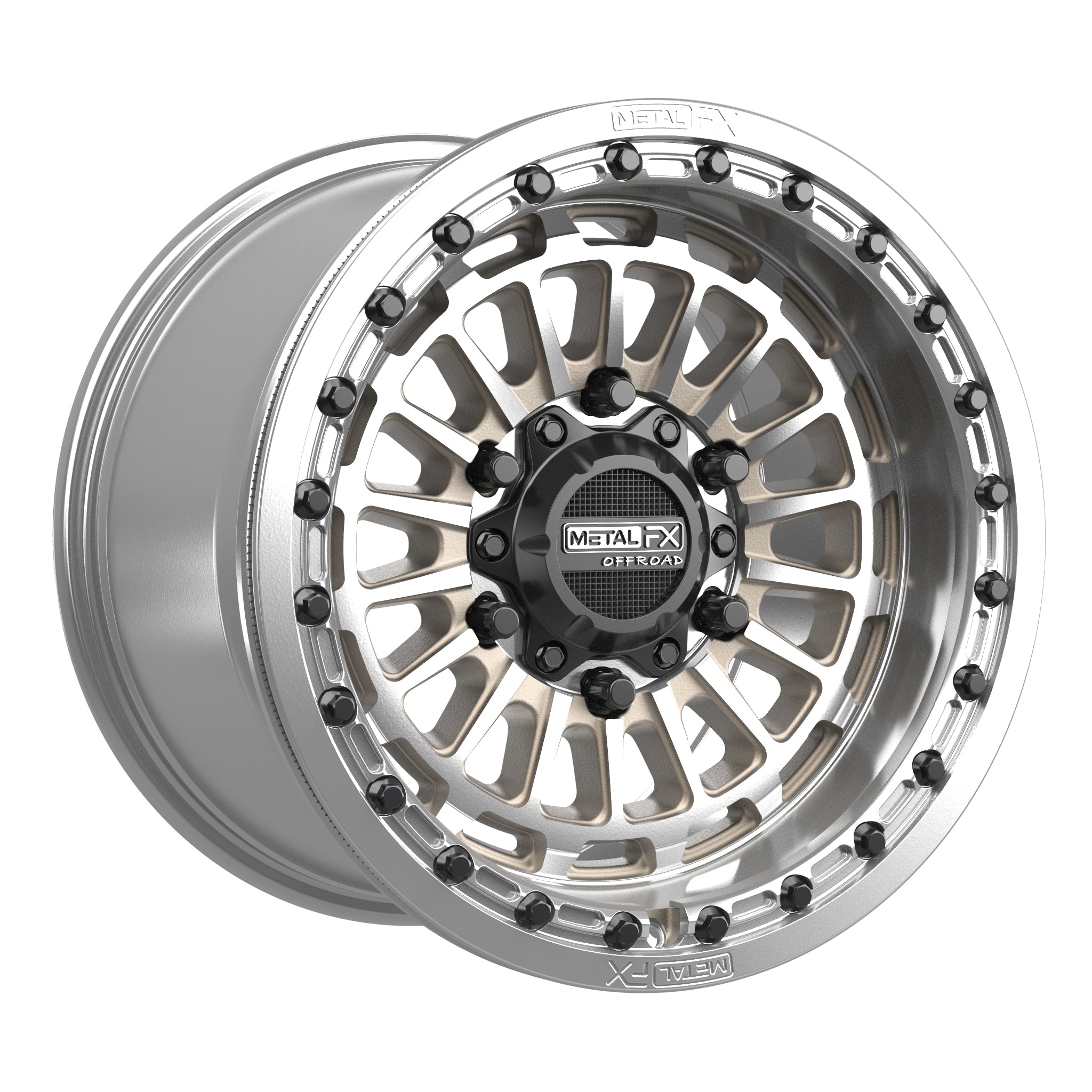

The Metal FX Offroad Delta 6R UTV Wheel combines our technical expertise with uncompromised attention to detail creating the ultimate in style and performance. The design of the Delta 6R includes a unique concave Center and a 6061- T6 Forged Aluminum Beadlock for enhanced strength and durability. Each model in the Metal FX Offroad Delta 6R Series is designed specifically for Can-Am Maverick R 6-Lug platforms.

- Super strong 6061-T6 Aluminum Beadlock Ring
- Lightweight 20lbs - 15x7 / 22lbs - 15x10

These wheels will fit the following machines:

Can-Am:
- Maverick R (2024+)
- Maverick R X (2024+)
- Maverick R X RS (2024+)
- Maverick R Max (2025)
- Maverick R Max X (2025)
- Maverick R Max X RS (2025)

FITMENT
15x7 +38mm
These wheels will make the machine 3.25" wider than factory with the factory tires. Aftermarket tires may cause width gain to vary.

15x10+38mm
These wheels will make the machine 3.25" wider than factory with the factory tires. Aftermarket tires may cause width gain to vary.

15x7 +38mm Delta 6R w/ 35” Roxxillas
= 83” total width

15x10 +38mm Delta 6R w/ 35” Roxxillas
= 83” total width

15x7 +38mm Delta 6R w/ 33x10 SS360
= 79” total width

15x10 +38mm Delta 6R w/ 33x12 SS360
= 82” total width

If you’re looking for a narrower dirt setup, our 15x7 +61mm Outlaw 6R wheels measure 2” narrower in total width.

Before installing

Be sure to remove the mud scrapers prior to installation of these wheels to avoid damage.

SPECIFICATIONS

SKU	Model	Finish	Size	Bolt Pattern	Backspace	Offset	UTV/ATV Offset	Bore	Weight	Load	Lip Size	Cap
78340	Delta 6R Beadlock	Satin Black	15x7	6x139.7 (6x5.5)	5.5	+38mm	5+2	78.1	19.8	1260	1.01	10324
78341	Delta 6R Beadlock	Satin Black	15x10	6x139.7 (6x5.5)	7	+38mm	6.5+3.5	78.1	22.1	1260	2.47	10324
78342	Delta 6R Beadlock	Satin Black Contrast Cut	15x7	6x139.7 (6x5.5)	5.5	+38mm	5+2	78.1	19.4	1260	1.01	10324
78343	Delta 6R Beadlock	Satin Black Contrast Cut	15x10	6x139.7 (6x5.5)	7	+38mm	6.5+3.5	78.1	21.6	1260	2.47	10324
78344	Delta 6R Beadlock	Gunmetal Contrast Cut	15x7	6x139.7 (6x5.5)	5.5	+38mm	5+2	78.1	19.4	1260	1.01	10325
78345	Delta 6R Beadlock	Gunmetal Contrast Cut	15x10	6x139.7 (6x5.5)	7	+38mm	6.5+3.5	78.1	21.6	1260	2.47	10325
78346	Delta 6R Beadlock	Raw	15x7	6x139.7 (6x5.5)	5.5	+38mm	5+2	78.1	19.4	1260	1.01	10324
78347	Delta 6R Beadlock	Raw	15x10	6x139.7 (6x5.5)	7	+38mm	6.5+3.5	78.1	21.6	1260	2.47	10324

SKU	Model	Finish	Size	Bolt Pattern	Backspace	Offset	UTV/ATV Offset	Bore	Weight	Load	Lip Size	Cap
78340	Delta 6R Beadlock	Satin Black	15x7	6x139.7 (6x5.5)	5.5	+38mm	5+2	78.1	19.8	1260	1.01	10324
78341	Delta 6R Beadlock	Satin Black	15x10	6x139.7 (6x5.5)	7	+38mm	6.5+3.5	78.1	22.1	1260	2.47	10324
78342	Delta 6R Beadlock	Satin Black Contrast Cut	15x7	6x139.7 (6x5.5)	5.5	+38mm	5+2	78.1	19.4	1260	1.01	10324
78343	Delta 6R Beadlock	Satin Black Contrast Cut	15x10	6x139.7 (6x5.5)	7	+38mm	6.5+3.5	78.1	21.6	1260	2.47	10324
78344	Delta 6R Beadlock	Gunmetal Contrast Cut	15x7	6x139.7 (6x5.5)	5.5	+38mm	5+2	78.1	19.4	1260	1.01	10325
78345	Delta 6R Beadlock	Gunmetal Contrast Cut	15x10	6x139.7 (6x5.5)	7	+38mm	6.5+3.5	78.1	21.6	1260	2.47	10325
78346	Delta 6R Beadlock	Raw	15x7	6x139.7 (6x5.5)	5.5	+38mm	5+2	78.1	19.4	1260	1.01	10324
78347	Delta 6R Beadlock	Raw	15x10	6x139.7 (6x5.5)	7	+38mm	6.5+3.5	78.1	21.6	1260	2.47	10324
